With shortwavelength and short pulse,the beam quality is excellent,high precision and high peak value.Therefore ,the system has excellent application characteristics in the field of special material processing which can significantly reduce the heat effecton the surface of various materials and improve the machining accuracy greatly.

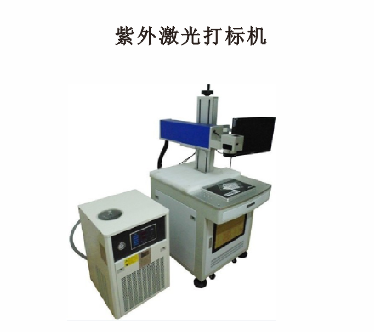

Model number : UV-L3XQP
Average output :3W
The output wavelength 355NM
The quality of light :M2,<1.5
Output stability :<2%
The pulse width :20ns@20kHz
Pulse energy : >150μJ
Repetitionfrequency :20-100kHz
The power supply :AC90-240V/50-60Hz/1Ph/700W
Products are mainly applicable to the silicon wafer,chip ceramic ,IC grain,all kinds of glass,TFT,LCD,plasma screen,the button is fine,the glass surface marking ,silicon tags,PCB processing fine-turning,flat panel dispaly manufacturing electronic components,solar battery materials processing, textiles, aggregation of thin film materialssuch as marking,and surface treatment.
